I-Joist Beam OSB Beam For Construction

Name: I-Joist Beam OSB Beam For Construction - Rensino Woodboard Co.,Ltd
SKU: Others-02

Description:

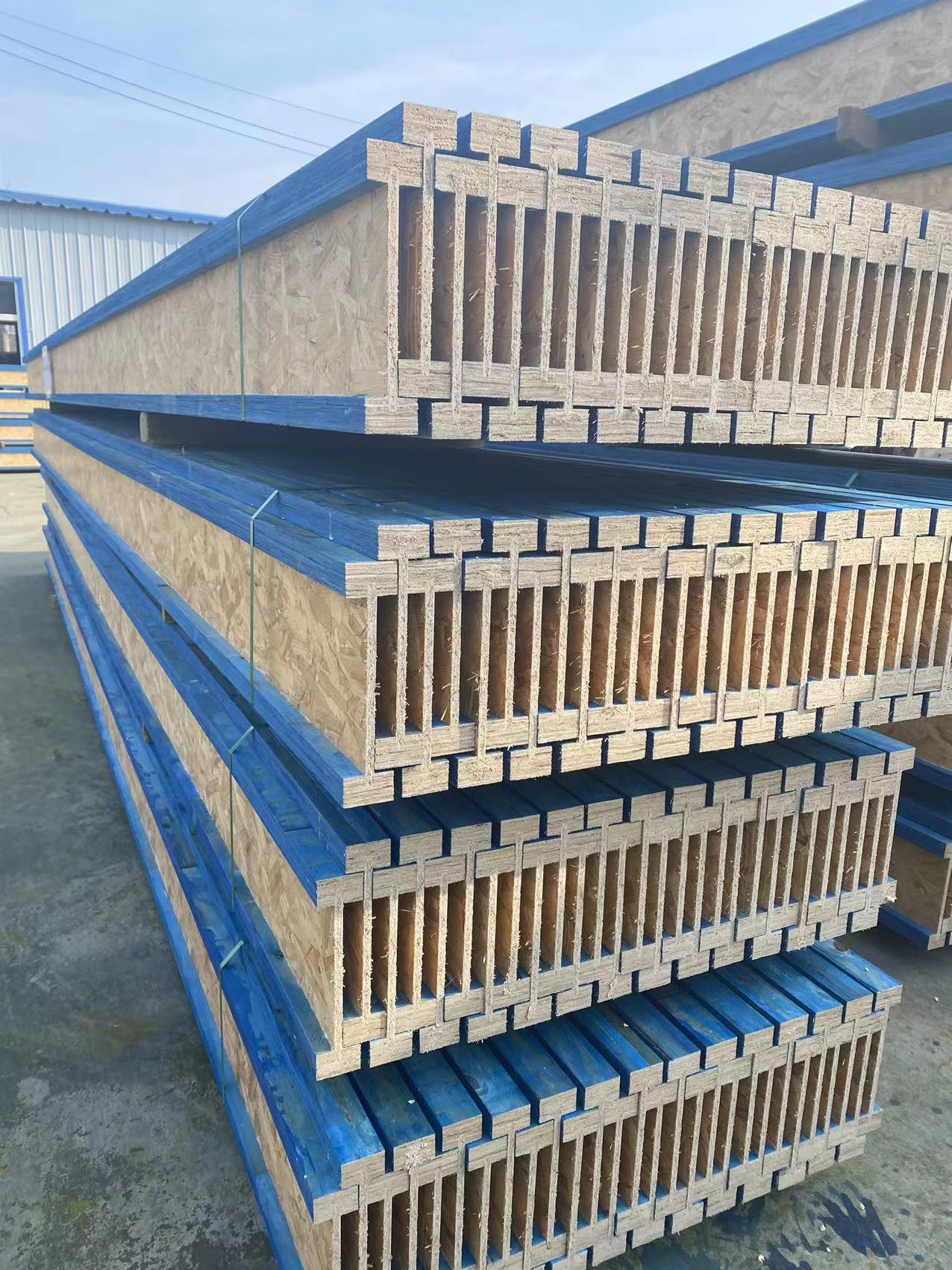

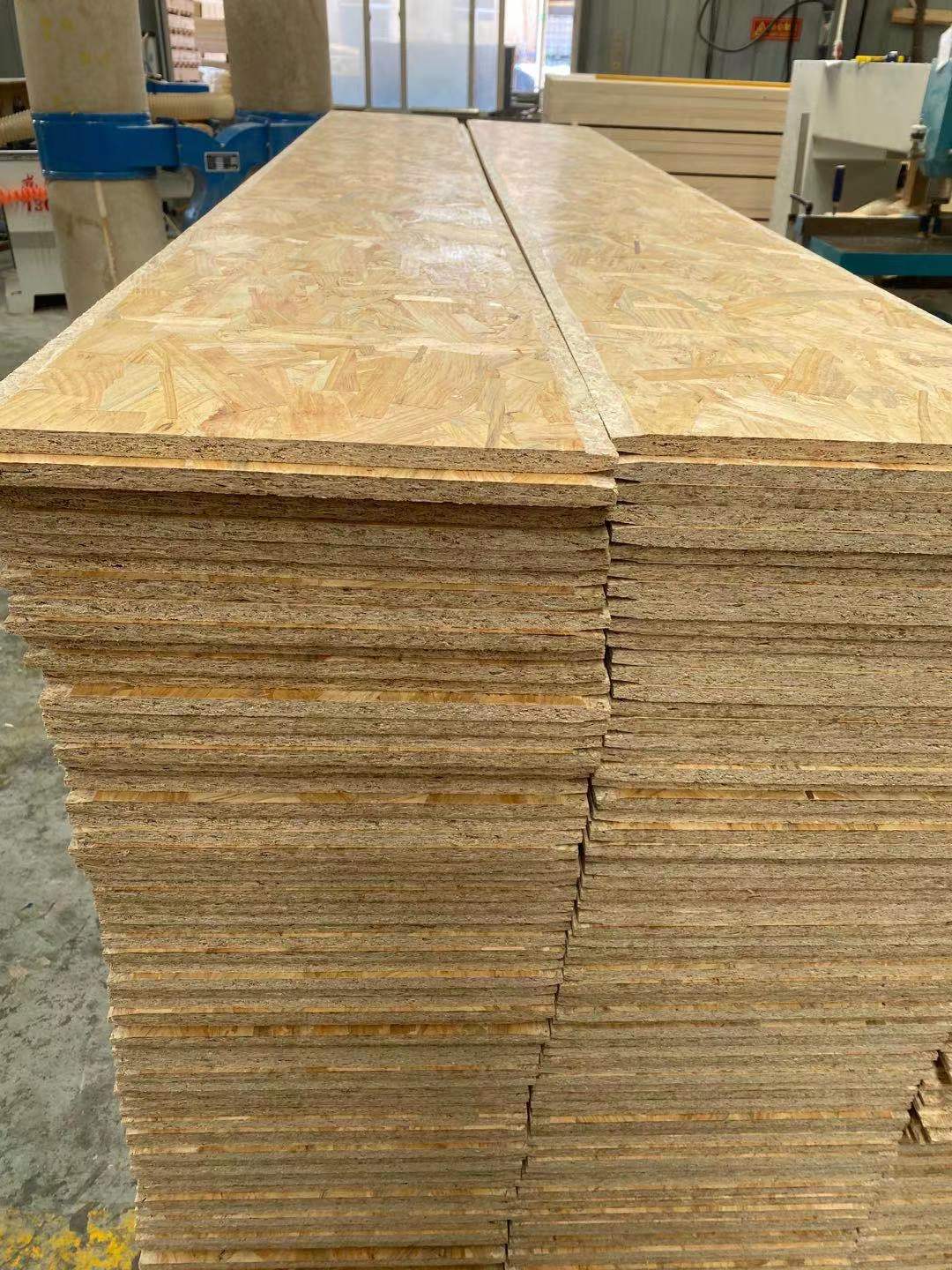

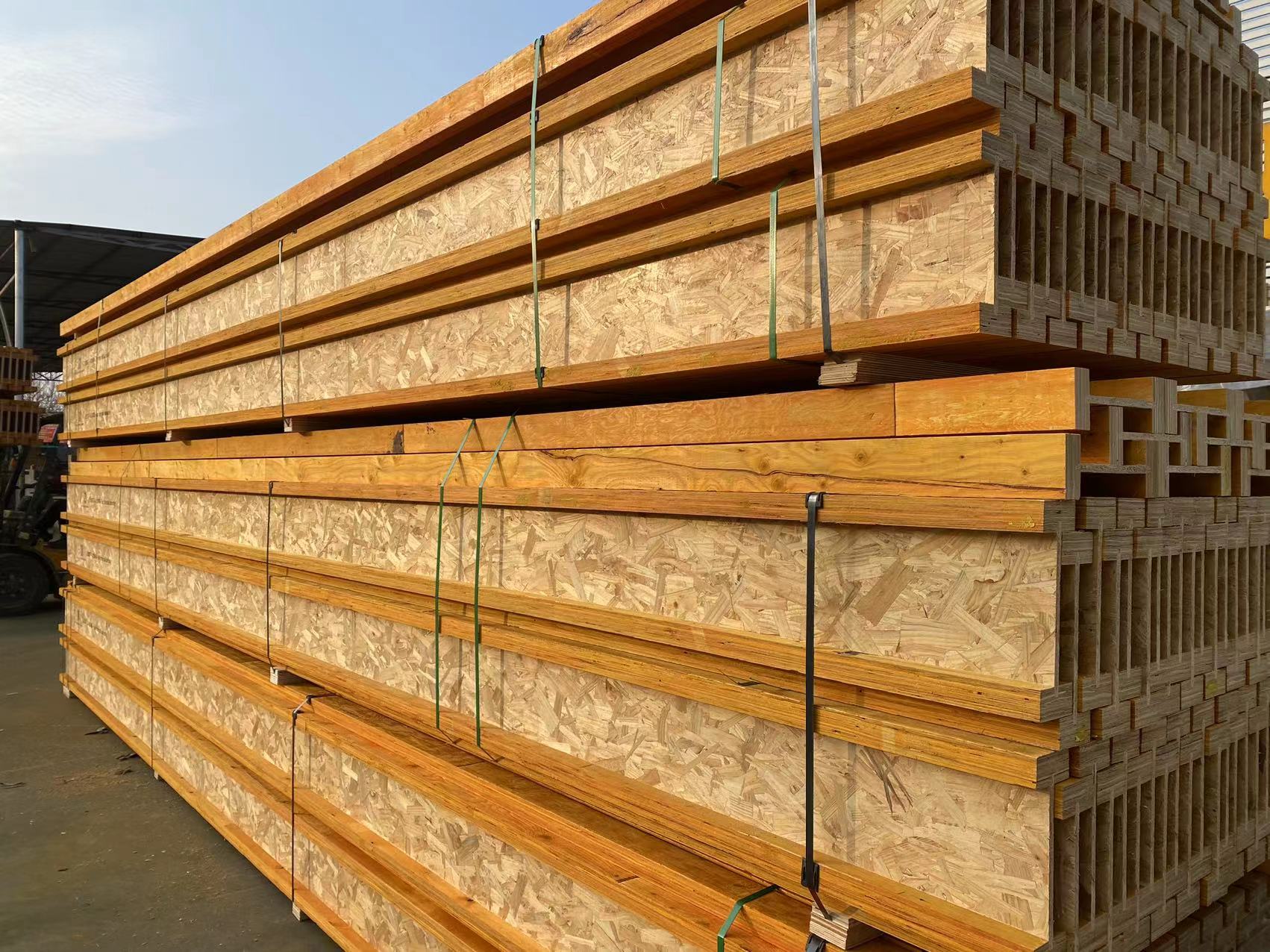

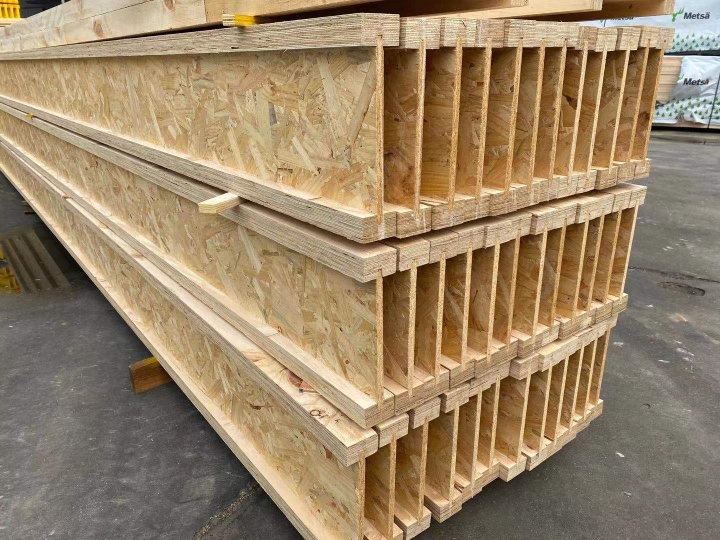

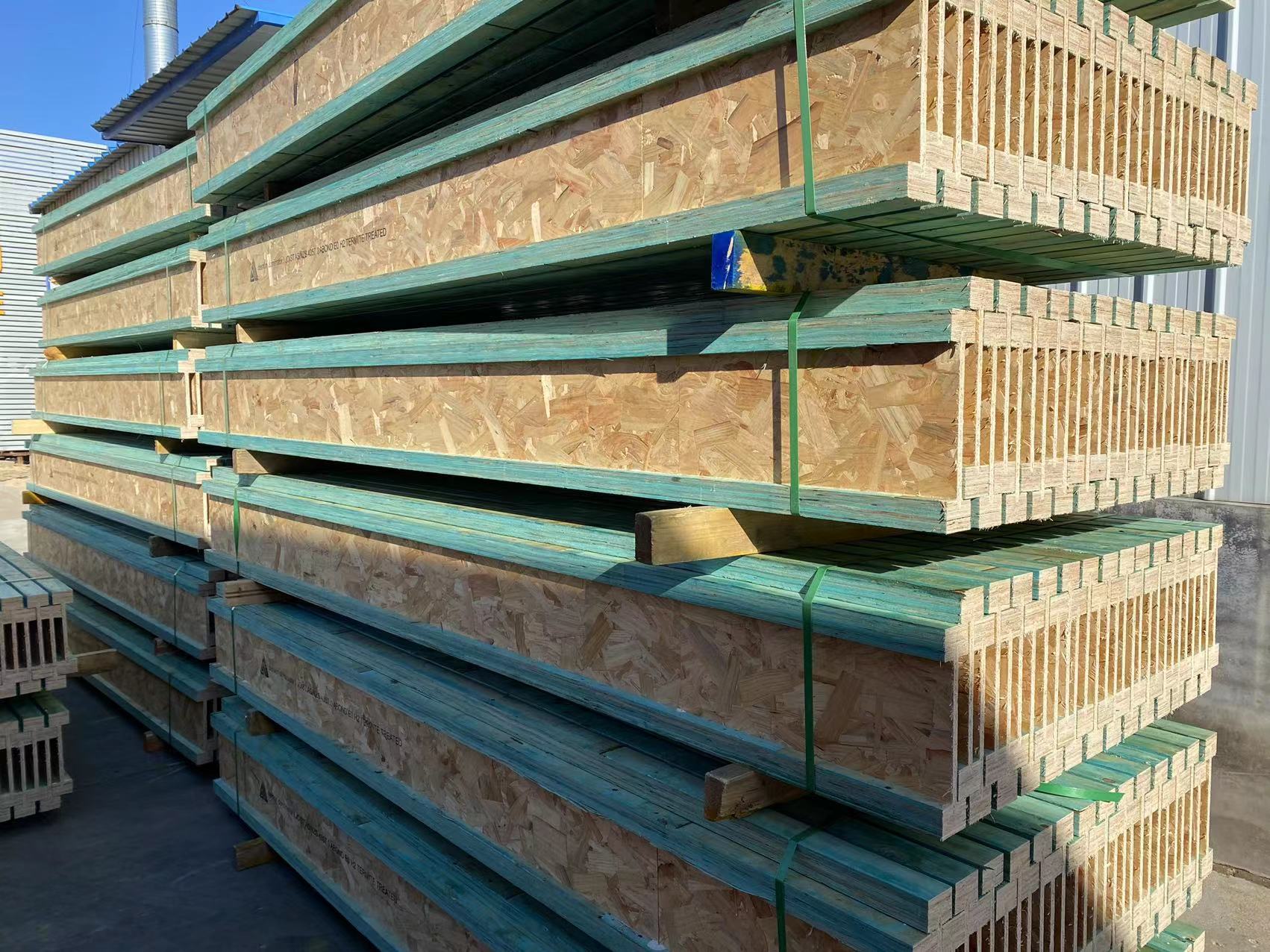

I-Joist is a New Wooden Engineering Structural Component . It refers to the solid wood or LVL used as the upper and lower flange, and the plywood structural plate bonding, specifications and performance of stable bearing structural members.The I joist is made up of two main parts: Flange and web these two parts: the first part is the flange flange of the upper and lower Flange, which is made up of solid wood or LVL.The second part is the intermediate Web called the Web(net), the usual material is OSB board.The Flange gets its name from web and flange, which are connected together with high-quality adhesives to form an ‘I’ shape.The web of I joist can be cut open to accommodate wires and pipes. A common I-beam web will have 40mm pre-punched holes. The specific position and maximum size of the holes can be calculated according to the drawings and corresponding tables, as shown in Figure 2, and the strength of the I-beam will not be affected by the pipe cutting holes.

Product details

Specifications

Item

LVL FLOORING I JOIST Beam

Flange Material

Spruce solid wood, finger-jointed and glueing

Web Material

Multilayer 30/40mm poplar plywood

Head Protection

Without head protection

Glueing

Finger-jointed between wings and web

Moisture Content

less than 14% at the time of delivery

Surface Protection

The finished beam is waterproofed using a water-based yellow color

Color

Yellow or as customer's request

Flange Size

63X40/30mm

Web Size

12mm thickness

Weight

Approx 5kg/Meter

Standard lengths

180-245-290-330-360-390-420-450-460-480-590,maximum 600(CM)

Mechanical Specification

Modulus of elasticity : E 10,800 N/mm2

Shear modulus : G 630 N/mm2

Packing

Pallet or in bulk150PCS/pallet or as request

2400M per 20GP 5000M per 40HQ

Capacity

ITEM	Working capacity	EN request	SGS test
maximum bending resistance	6KN. M	10.9KN. M	16.2KN. M
maximum shearing resistance	12KN	23.9KN	30.8KN
maximum bearing resistance	23KN	47.8KN	53.2KN

Application

Level formwork system, Vertical formwork system, Adjustable formwork system, Curve formwork system, Irregular formwork, etc.

Advantages

I-Joist is an important part of the international common building formwork system. It has the characteristics of light weight, high strength, good straightness, not easy to deformation, water and acid and alkali resistance on the surface. It can be used year-round and has low cost amortization costs. Can be used with domestic and foreign professional template system products.

2, can be widely used in horizontal formwork system, vertical formwork system (wall mold, column mold, hydraulic climbing mold, etc.), variable arc formwork system and heterosexual formwork and other formwork system.

3, woodworking beam straight wall template for loading and unloading template, convenient assembly, in a certain range and degree can be assembled into a variety of sizes of templates, flexible application. Mold plate stiffness, length and height are very convenient, the maximum of a template can be poured more than 10 meters. Because of the light quality of the template material, the whole template is much lighter than the steel template when assembled.

4, the system product parts high degree of standardization, good reuse, meet the requirements of environmental protection.
